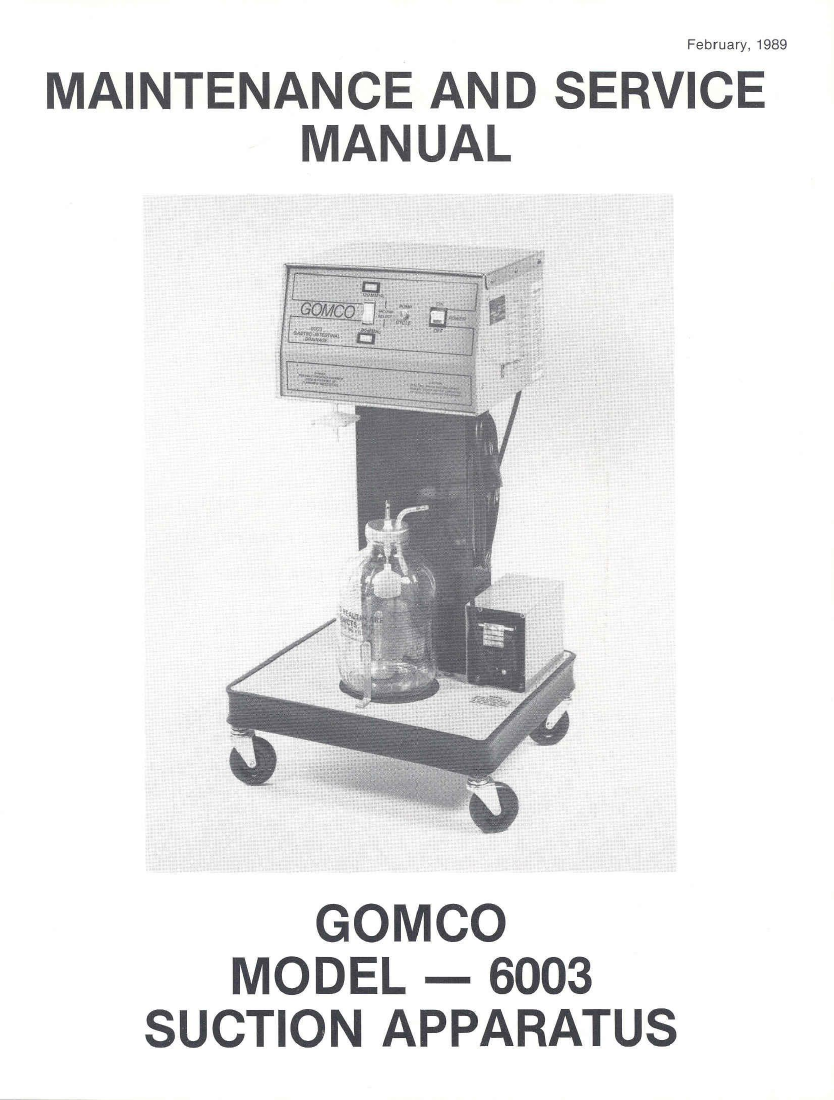

GOMCO MODEL — 6003 SUCTION APPARATUS
MAINTENANCE AND SERVICE MANUAL
GOMCO MODEL - 6003 SUCTION APPARATUS
INDEX
| 1.0 | GENERAL INFORMATION. ....................... | GENERAL INFORMATION. ....................... | 2 |
|---|---|---|---|
| 1.1 | MAJOR ASSEMBLIES (REFERENCE) | σα | |
| 12 | PURPOSETas Ak a e | eke | |
| 19: | FEATURES: esl sa ale fe eke ayers exe cae lore ave | neers 2 | |
| 20 | SETUP, | о potes | вЫ 2 |
| 2.1 | COLLECTION BOTTLE т ie | Ca | |
| 22 | ВАСТЕНАНЕТЕВ. . | te 2 | |
| 3.0 | OPERATING PROCEDURE........................ | OPERATING PROCEDURE........................ | 3 |
| 3.1 | PERFORMANCE CHECKS................... | 4 | |
| 4.0 | CARE AND МА!МТЕМАМСЕ....................... | CARE AND МА!МТЕМАМСЕ....................... | 4 |
| 4.1 | PERIODIC MAINTENANCE. | ..4 | |
| 4.2 | BACTERIAFILTER......... | '4 | |
| 4.3 | COLLECTION BOTTLE.. | . D | |
| 4.4 | STAND osーー | <a | |
| 45 | STORAGE me | eee 5 | |
| 5:0 | 'OPERATING_PRINCIPLE, | com tanta de | eee 5 |
| 6:0. | 'SERVICE -AND' REPAIR | uu ee | 6 |
| 61 | SPECIFICATIONS ere. | 6 | |
| 6.2 | PUMP CYLINDER REPLACEMENT............ | 7 | |
| 6.3 | ELEMENT REPLACEMENT....... | Er | |
| 64 | CONTROL CIRCUIT. euae gee | 7 | |
| 6.5 | SUCTION AND PRESSURE VALVES. | 9 | |
| 6.6; | FÜSE REPLAGEMENT: unas | e 9 | |
| ga | ga | 9 | |
| NO. 1 FINAL ASSEMBLY. | NO. 1 FINAL ASSEMBLY. | ||
| NO:2/FRONT PANEL. | NO:2/FRONT PANEL. | ||
| NO. 3 COLLECTION BOTTLE ASSEMBLY.......... | NO. 3 COLLECTION BOTTLE ASSEMBLY.......... | ||
| NO. 4 CYLINDER ASSEMBLY | NO. 4 CYLINDER ASSEMBLY | ||
| NO. 5 CONTROL CIRCUIT... | NO. 5 CONTROL CIRCUIT... | ||
| NO. 6 VALVE ASSEMBLY | NO. 6 VALVE ASSEMBLY | ||
| NO. 7 WIRING DIAGRAM | NO. 7 WIRING DIAGRAM | ||
| Bo! | TROUBLE SHOOTINGSITO | nedre Re, | 21 |
| 9.0 | REPLACEMENT PARTS LIST.................. | REPLACEMENT PARTS LIST.................. | 22-23 |
| 10:0 | COPYRIGHT ss | sis cia us arosa | Sa 23 |
Table Caption: This table appears to be a table of contents or index for a technical manual, outlining various sections such as General Information, Operating Procedure, Maintenance, Service and Repair, Troubleshooting, and Replacement Parts, with corresponding page numbers.
1.0 GENERAL INFORMATION
- πει See Illustration No. 1 for major assemblies and nomenclatures.
12 Purpose:
The Gomco Model 6003 is a mobile drainage pump designed to assure gentle suction for specialized uses as gastric lavage, abdominal decompression, duodenal and fistula drainage following prostatectomy. The suction system include two preset drainage levels of 90mm and 120mm of mercury vacuum.
13 Features:
Supplied with Gomco Model 6003 Gastro-Intestinal Drainage Pump are:
- de A one gallon glass collection container graduated to 2800 ml with overflow protection cap assembly.
- A package containing three bacteria filters to prevent contamination of the pump.
- Compact cart with non-marking casters (2-with brakes), easy to clean stainless steel top work surface, illuminated on-off switch, vacuum selector switch, pump cycle lamp and hospital grade plug.
- One disposable tubing package containing a 15-inch and a 72-inch length of clean 1/4-inch I.D. clear PVC tubing.
- 5: A step-down transformer enabling the use of Model 6003 in areas supplied with 230 volts.
- Solid State pump control to provide days of continuous suction duty.
- Us One spare check valve and mainfold assembly.
1.3.1 OVERFLOW PROTECTION (See Ill. No. 3)
The 2800 collection bottle assembly supplied with this pump includes a cap and float assembly (See Illustration No. 3). When collected patient fluids reach the maximum safe limit of the bottle, the vacuum supply to the collection bottle is shut off by the cap and float.
1.3.2 BACTERIA FILTER (See Ill. No. 1)
The high efficiency bacteria is custom engineered to prevent fluid and aerosol contaminations of mobile suction units. This filter features a hydropobic, microporous membrane which filters air with maximum efficiency (0.3 micron particles in air), while blocking the flow of aqueous fluids and aerosol contaminants. The Gomco high efficiency filter protects against suction pump contamination in the case of canister overflow as it helps prevent the overflow from reaching the pump.
2.0 SET-UP:
2.1 COLLECTION BOTTLE: (See Illustration No. 3)
- 2 Check that the cap gasket is properly positioned inside the cover.
- E Check the bottle top edge for nicks. If the bottle top is nicked, it will not seal.
- Be sure the float moves freely.
- 4 Screw the cover assembly securely onto the bottle top making the gasket seals.
2.2 BACTERIA FILTER (See Figure 1)
- Locate the vacuum and filter connection on the left bottom side of the stand body.
Install the bacteria filter to pump stand prior to patient application by;
-
2 Screw the threaded end of the filter into the vacuum and filter connection bv turning in clockwise direction.
-
3 Tighten finger tight. NOTE: Care must be taken when installing
the filter to prevent thread damage due to cross threading and over-tightening.
3.0 OPERATING PROCEDURE:
- The power switch should be in the 'off' position (See Illustration No. 2) 1.
- The voltage supply (115v. 50-60 Hz or 230v. 50-60 Hz) of the room that the suction apparatus is to be used in must be determined. For 115 volt use, the power cord extending down from left corner of the stand body (parallel bladed plug) should be plugged directly into the 115 volt receptacle. For 230 volt use, plug the power cord extending down from the left corner of the stand body (parallel bladed plug) into the transformer receptacle at the rear of the stand base. Plug the power cord extending out of the opposite end of the transformer (straight bladed plug) into the 230 volt receptacle. 2
- Be sure the collection bottle is assembled as specified in 2.1. Insert the bottle into the bottle brackets on the stand base.
- Be sure the bacteria filter is installed as specified in 2.2 4
- Connect the short length of tubing, enclosed in the tubing package, to the vertical bottle cap fitting stamped 'to pump' and to the bacteria filter hose barb.
- Connect the 72-inch length of tubing to the long bent tube of the bottle cap
